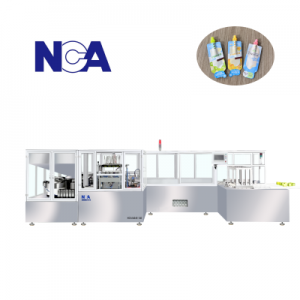

China Supplier Good Price Automatic Milk Pouch Filling Machine Spout Inserting Machine Vinegar Packing Machine

简短描述:

l.The machine is used for making three-side sealing bag or stand-up bag with spout from the plastic laminated film.

2.Compared with the common bag making machine, which are with the high production efficiency, turnover less, low cost, stable quality etc futures.

Send email to us

产品详情

Our organization sticks to your principle of “Quality may be the life of your organization, and reputation will be the soul of it” for China Supplier Good Price Automatic Milk Pouch Filling Machine Spout Inserting Machine Vinegar Packing Machine, High-quality is factory’s everyday living , Focus on customers’ demand would be the source of organization survival and advancement, We adhere to honesty and good faith doing the job attitude, seeking forward towards your coming !
Our organization sticks to your principle of “Quality may be the life of your organization, and reputation will be the soul of it” for China Automatic Packing Machine and Filling Machine, Our company is working by the operation principle of “integrity-based, cooperation created, people oriented, win-win cooperation”. We hope we can have a friendly relationship with businessman from all over the world.

Usage

1.The machine is used for making three-side sealing bag or stand-up bag with spout from the plastic laminated film.

2.The machine starts from unwinding, in turn are magnetic powder brake, dancer arm roller tension adjusting, cutting, rectifying, double layers coinciding, bottom film feed and inserting, (shape puncher), servo drive, spout feed, spout hot sealing, spout cold sealing, cross hot sealing, cross cold sealing, (shape puncher),color code tracking, servo traction, cutting off (shape puncher), products unloading table.

Advantage

1.Welding nozzle, bag making machine

2.Double independent bag, storage (refueling without stop)

3.Double cutting knife, double roll

Working process

The machine starts from unwinding, in turn are magnetic powder brake, dancer arm roller tension adjusting, cutting, rectifying, double layers coinciding, bottom film inserting, shape puncher, servo drive, spout feed, spout hot sealing, spout cold sealing, cross hot sealing, cross cold sealing, color code tracking, servo traction, cutting off (shape puncher), products unloading table.

Machine technique parameters

1	Film material	Plastic laminated film
2	Capacity:	Single bag feed：Max35-40pcs/minDouble bag feed：Max 70-80pcs/min
3	Material thickness	0.06～0.15mm
4	Spout type	Different kinds of small plastic spout.
5	(Speed for spout pouch, specific speed according to pouch size and material)
6	Pouch size:(L×W)	Single bag feed：Max300×200mmDouble bag feed：Max150×100mm
7	Total power	About 25KW
8	Power voltage	AC380V,50HZ, 3P
9	Air pressure:	0.5-0.7Mpa
10	Cooling water:	10L/min
11	Machine working table height:	950mm
11	Machine working table height:	handle operation height 850mm
12	Machine dimension(MAX):	L×W×H: 8200mm×3500mm×2000mm
13	Machine weight:	about 5000KG
14	Machine color:	Gray (wallboard)/ stainless steel (guard board)

acvava (4)
acvava (3)
acvava (2)
acvava (1)
acvava (5)
Our organization sticks to your principle of “Quality may be the life of your organization, and reputation will be the soul of it” for China Supplier Good Price Automatic Milk Pouch Filling Machine Spout Inserting Machine Vinegar Packing Machine, High-quality is factory’s everyday living , Focus on customers’ demand would be the source of organization survival and advancement, We adhere to honesty and good faith doing the job attitude, seeking forward towards your coming !
China Supplier China Automatic Packing Machine and Filling Machine, Our company is working by the operation principle of “integrity-based, cooperation created, people oriented, win-win cooperation”. We hope we can have a friendly relationship with businessman from all over the world.
